図形のサンプル

1. 市松模様の背景

コード
# include <Siv3D.hpp>

void Main()
{
	Scene::SetBackground(ColorF{ 0.8 });

	constexpr int32 CellSize = 20;

	while (System::Update())
	{
		for (int32 y = 0; y < (Scene::Height() / CellSize); ++y)
		{
			for (int32 x = 0; x < (Scene::Width() / CellSize); ++x)
			{
				if (IsEven(y + x))
				{
					Rect{ (x * CellSize), (y * CellSize), CellSize }.draw(ColorF{ 0.75 });
				}
			}
		}
	}
}

2. 不規則に見える長方形グリッド

コード
# include <Siv3D.hpp>

//
// 参考: OffGrid by Chris Cox
// https://gitlab.com/chriscox/offgrid
//

uint64 g_seed = RandomUint64();

Vec2 PointToRandomVector(int32 x, int32 y)
{
	PRNG::SplitMix64 rng{ (Point{ x, y }.hash() ^ g_seed) };
	return RandomVec2(Circle{ 1 }, rng);
}

Vec2 GetXY(int32 x, int32 y, double t, const Vec2& offset, const double cellSize)
{
	const Vec2 pos{ offset + (cellSize * Vec2{ x, y }) };
	return (pos + (PointToRandomVector(x, y) * t * (cellSize * 0.5)));
}

ColorF GetColor(int32 x, int32 y)
{
	PRNG::SplitMix64 rng{ (Point{ x, y }.hash() ^ g_seed) };
	return HSV{ Random(60.0, 140.0, rng), Random(0.5, 0.9, rng), Random(0.4, 1.0, rng) };
}

void Main()
{
	Window::Resize(1280, 720);
	Scene::SetBackground(ColorF{ 1.0 });

	constexpr Size CellCount{ 10, 6 };
	constexpr Vec2 Offset{ 60, 80 };
	constexpr double CellSize = 90.0;
	constexpr ColorF LineColor{ 0.15 };
	constexpr double LineThickness = 4.0;
	constexpr double LineLengthHalf = (CellSize * 0.4);

	double t = 0.0;
	bool showLine = true;

	while (System::Update())
	{
		SimpleGUI::Slider(t, Vec2{ 1030, 60 }, 160);
		SimpleGUI::CheckBox(showLine, U"Show line", Vec2{ 1030, 100 });
		if (SimpleGUI::Button(U"New seed", Vec2{ 1030, 140 }))
		{
			g_seed = RandomUint64();
		}

		for (int32 y = 0; y < CellCount.y; ++y)
		{
			for (int32 x = 0; x < CellCount.x; ++x)
			{
				const Vec2 p0 = GetXY(x, y, t, Offset, CellSize);
				const Vec2 p1 = GetXY(x + 1, y, t, Offset, CellSize);
				const Vec2 p2 = GetXY(x, y + 1, t, Offset, CellSize);
				const Vec2 p3 = GetXY(x + 1, y + 1, t, Offset, CellSize);
				const ColorF color = GetColor(x, y);

				if (IsEven(x + y))
				{
					const double top = p0.y;
					const double bottom = p3.y;
					const double left = p2.x;
					const double right = p1.x;
					RectF{ left, top, (right - left), (bottom - top) }.stretched(-1).draw(color);
				}
				else
				{
					const double top = p1.y;
					const double bottom = p2.y;
					const double left = p0.x;
					const double right = p3.x;
					RectF{ left, top, (right - left), (bottom - top) }.stretched(-1).draw(color);
				}
			}
		}

		if (showLine)
		{
			for (int32 y = 0; y <= CellCount.y; ++y)
			{
				for (int32 x = 0; x <= CellCount.x; ++x)
				{
					const Vec2 p0 = GetXY(x, y, t, Offset, CellSize);

					if (IsEven(x + y))
					{
						Line{ p0.movedBy(-LineLengthHalf, 0), p0.movedBy(LineLengthHalf, 0) }
							.draw(LineStyle::RoundCap, LineThickness, LineColor);
					}
					else
					{
						Line{ p0.movedBy(0, -LineLengthHalf), p0.movedBy(0, LineLengthHalf) }
							.draw(LineStyle::RoundCap, LineThickness, LineColor);
					}
				}
			}
		}
	}
}

3. ボロノイ図

コード
# include <Siv3D.hpp>

void Main()
{
	constexpr Size SceneSize{ 1280, 720 };
	constexpr Rect SceneRect{ SceneSize };

	Window::Resize(SceneSize);

	Subdivision2D subdiv{ SceneRect };

	// シーンの長方形内にほどよい間隔で点を生成する
	for (const PoissonDisk2D pd{ SceneSize, 40 };
		const auto& point : pd.getPoints())
	{
		if (SceneRect.contains(point))
		{
			subdiv.addPoint(point);
		}
	}

	const Array<Polygon> facetPolygons = subdiv
		.calculateVoronoiFacets() // ボロノイ図を計算する
		.map([SceneRect](const VoronoiFacet& f) // シーンの長方形内にクリッピングする
	{
		return Geometry2D::And(Polygon{ f.points }, SceneRect).front();
	});

	while (System::Update())
	{
		for (auto&& [i, facetPolygon] : Indexed(facetPolygons))
		{
			facetPolygon
				.draw(HSV{ (i * 25.0), 0.5, 0.9 })
				.drawFrame(3, ColorF{ 1.0 });
		}
	}
}

4. ボロノイ図・ドロネー図の動的な生成

コード
# include <Siv3D.hpp>

void Main()
{
	constexpr Size SceneSize{ 1280, 720 };
	constexpr Rect SceneRect{ SceneSize };
	constexpr Rect AreaRect = SceneRect.stretched(-50);

	Window::Resize(SceneSize);
	Scene::SetBackground(ColorF{ 0.99 });

	Subdivision2D subdiv{ AreaRect };

	// ドロネー三角形分割の三角形リスト
	Array<Triangle> triangles;

	// ボロノイ図の情報のリスト
	Array<VoronoiFacet> facets;

	// facets を長方形でクリップし Polygon に変換したリスト
	Array<Polygon> facetPolygons;

	while (System::Update())
	{
		const Vec2 pos = Cursor::PosF();

		// 長方形上をクリックしたら
		if (AreaRect.leftClicked())
		{
			// 点を追加
			subdiv.addPoint(pos);

			// ドロネー三角形分割の計算
			subdiv.calculateTriangles(triangles);

			// ボロノイ図を計算する
			subdiv.calculateVoronoiFacets(facets);

			// エリアの範囲内にクリッピングする
			facetPolygons = facets.map([AreaRect](const VoronoiFacet& f)
			{
				return Geometry2D::And(Polygon{ f.points }, AreaRect).front();
			});
		}

		AreaRect.draw(ColorF{ 0.75 });

		for (auto&& [i, facetPolygon] : Indexed(facetPolygons))
		{
			facetPolygon.draw(HSV{ (i * 25.0), 0.65, 0.8 }).drawFrame(3, ColorF{ 0.25 });
		}

		for (const auto& triangle : triangles)
		{
			triangle.drawFrame(2.5, ColorF{ 0.9 });
		}

		for (const auto& facet : facets)
		{
			Circle{ facet.center, 6 }.drawFrame(5).draw(ColorF{ 0.25 });
		}

		// 現在のマウスカーソルから最短距離にある点を探す
		if (const auto nearestVertexID = subdiv.findNearest(pos))
		{
			const Vec2 nearestVertex = subdiv.getVertex(nearestVertexID.value());
			Line{ pos, nearestVertex }.draw(LineStyle::RoundDot, 6, ColorF{ 0.75 });
			Circle{ nearestVertex, 16 }.drawFrame(3.5);
		}
	}
}

5. 図形の輪郭の一部を LineString として取得する

コード
# include <Siv3D.hpp>

void Main()
{
	Window::Resize(1280, 720);
	Scene::SetBackground(ColorF{ 0.15 });

	const Polygon polygon0 = Shape2D::Plus(180, 100, Scene::Center().movedBy(-350, -120));
	const Polygon polygon1 = Shape2D::Heart(180, Scene::Center().movedBy(0, 120));
	const Polygon polygon2 = Shape2D::NStar(8, 180, 140, Scene::Center().movedBy(350, -120));

	while (System::Update())
	{
		const double t = (Scene::Time() * 720);

		polygon0.draw(ColorF{ 0.4 });
		polygon0.outline(t, 200).draw(LineStyle::RoundCap, 8, ColorF{ 0, 1, 0.5 });

		polygon1.draw(ColorF{ 0.4 });
		polygon1.outline(t, 200).draw(LineStyle::RoundCap, 8, ColorF{ 0, 1, 0.5 });

		polygon2.draw(ColorF{ 0.4 });
		polygon2.outline(t, 200).draw(LineStyle::RoundCap, 8, ColorF{ 0, 1, 0.5 });
	}
}

6. GPU での頂点生成

コード
# include <Siv3D.hpp>

void Main()
{
	Window::Resize(1280, 720);
	Scene::SetBackground(ColorF{ 0.8, 0.9, 1.0 });

	const VertexShader vs
		= HLSL{ U"example/shader/hlsl/soft_shape.hlsl" }
		| GLSL{ U"example/shader/glsl/soft_shape.vert", { { U"VSConstants2D", 0 }, { U"SoftShape", 1 } }};

	if (not vs)
	{
		throw Error{ U"Failed to load a shader file" };
	}

	ConstantBuffer<float> cb;

	while (System::Update())
	{
		cb = static_cast<float>(Scene::Time());
		Graphics2D::SetVSConstantBuffer(1, cb);

		{
			const ScopedCustomShader2D shader{ vs };

			// 頂点情報の無い三角形を 360 個描画する
			// (頂点情報は頂点シェーダで設定する)
			Graphics2D::DrawTriangles(360);
		}
	}
}

7. 長方形詰込み

コード
# include <Siv3D.hpp>

// 画面上に散らばるランダムな長方形の配列を作成する関数
Array<Rect> GenerateRandomRects()
{
	Array<Rect> rects(Random(4, 32));

	for (auto& rect : rects)
	{
		const Point center = RandomPoint(Scene::Rect().stretched(-80));
		rect = Rect{ Arg::center = center, Random(20, 150), Random(20, 150) };
	}

	return rects;
}

void Main()
{
	Window::Resize(1280, 720);
	Scene::SetBackground(ColorF{ 0.99 });

	Array<Rect> input;
	Array<double> rotations;
	RectanglePack output;
	Point offset{ 0, 0 };
	Stopwatch stopwatch;

	while (System::Update())
	{
		if ((not stopwatch.isStarted()) || (1.8s < stopwatch))
		{
			input = GenerateRandomRects();
			rotations.resize(input.size());
			rotations.fill(0.0);

			// AllowFlip::Yes を指定すると、90° 回転による詰め込みを許可する
			output = RectanglePacking::Pack(input, 1024, AllowFlip::Yes);

			for (size_t i = 0; i < input.size(); ++i)
			{
				if (input[i].w != output.rects[i].w)
				{
					rotations[i] = 270_deg;
				}
			}

			// 画面中央に表示するよう位置を調整
			offset = ((Scene::Size() - output.size) / 2);
			for (auto& rect : output.rects)
			{
				rect.moveBy(offset);
			}

			stopwatch.restart();
		}

		// アニメーション
		const double k = Min(stopwatch.sF() * 10, 1.0);
		const double t = Math::Saturate(stopwatch.sF() - 0.2);
		const double e = EaseInOutExpo(t);

		Rect{ offset, output.size }.draw(ColorF{ 0.7, e });

		for (size_t i = 0; i < input.size(); ++i)
		{
			const RectF in = input[i].scaledAt(input[i].center(), k);
			const RectF out = output.rects[i];
			const Vec2 center = in.center().lerp(out.center(), e);
			const RectF rect{ Arg::center = center, in.size };

			rect.rotatedAt(rect.center(), Math::Lerp(0.0, rotations[i], e))
				.draw(HSV{ i * 25.0, 0.65, 0.9 })
				.drawFrame(2, 0, ColorF{ 0.25 });
		}
	}
}

8. 六角形タイル

コード
# include <Siv3D.hpp>

namespace Hex
{
	inline constexpr Vec2 IndexToPixel(const Point& index, const double hexR) noexcept
	{
		const double tileWidth = (hexR * Math::Sqrt3);
		const double halfWidth = (tileWidth * 0.5);
		const double tileHeight = (hexR * 1.5);
		return{ (index.x * tileWidth + IsOdd(index.y) * halfWidth), (index.y * tileHeight) };
	}

	// 参考
	// https://stackoverflow.com/questions/7705228/hexagonal-grids-how-do-you-find-which-hexagon-a-point-is-in
	inline Point PixelToIndex(const Vec2& _pos, const double hexR)
	{
		const double tileWidth = (hexR * Math::Sqrt3);
		const double halfWidth = (tileWidth * 0.5);
		const double tileHeight = (hexR * 1.5);

		const Vec2 pos{ (_pos.x + halfWidth), (_pos.y + hexR) };
		int32 row = static_cast<int32>(Math::Floor(pos.y / tileHeight));
		const bool rowIsOdd = IsOdd(row);
		int32 column = static_cast<int32>(Math::Floor(rowIsOdd ? ((pos.x - halfWidth) / tileWidth) : (pos.x / tileWidth)));

		const double relY = (pos.y - (row * tileHeight));
		const double relX = (rowIsOdd ? ((pos.x - (column * tileWidth)) - halfWidth) : (pos.x - (column * tileWidth)));
		const double c = (hexR * 0.5);
		const double m = (c / halfWidth);

		if (relY < (-m * relX) + c)
		{
			return{ (column - (not rowIsOdd)), (row - 1) };
		}
		else if (relY < (m * relX) - c)
		{
			return{ (column + rowIsOdd), (row - 1) };
		}

		return{ column, row };
	}
}

void Main()
{
	Scene::SetBackground(ColorF{ 0.5, 0.6, 0.7 });
	const Font font{ FontMethod::MSDF, 48, Typeface::Bold };

	constexpr Vec2 Offset{ 60, 60 };
	constexpr double HexRadius = 50.0;
	const Size GridSize{ 8, 7 };

	while (System::Update())
	{
		for (auto p : step(GridSize))
		{
			const Vec2 center = (Hex::IndexToPixel(p, HexRadius) + Offset);

			Shape2D::Hexagon(HexRadius, center)
				.draw(ColorF{ 0.75 })
				.drawFrame(2);

			font(p).drawAt(16, center);
		}

		{
			const Point index = Hex::PixelToIndex(Cursor::Pos() - Offset, HexRadius);
			const Vec2 center = (Hex::IndexToPixel(index, HexRadius) + Offset);
			Shape2D::Hexagon(HexRadius, center).drawFrame(10);
		}
	}
}

9. 2D マップの可視領域

コード
# include <Siv3D.hpp>

class VisibilityMap
{
public:

	explicit VisibilityMap(const RectF& region)
		: m_region{ region }
		, m_maxDistance{ m_region.w + m_region.h }
	{
		add(m_region);
	}

	void add(const Triangle& t)
	{
		m_lines << t.side(0) << t.side(1) << t.side(2);
	}

	void add(const RectF& r)
	{
		m_lines << r.top() << r.right() << r.bottom() << r.left();
	}

	void add(const Quad& q)
	{
		m_lines << q.side(0) << q.side(1) << q.side(2) << q.side(3);
	}

	void add(const Circle& c, int32 quality = 8)
	{
		const double da = (2_pi / Max(quality, 6));

		for (int32 i = 0; i < quality; ++i)
		{
			m_lines.emplace_back(c.getPointByAngle(da * i), c.getPointByAngle(da * (i + 1)));
		}
	}

	void add(const Polygon& p)
	{
		const auto& outer = p.outer();

		for (size_t i = 0; i < outer.size(); ++i)
		{
			m_lines.emplace_back(outer[i], outer[(i + 1) % outer.size()]);
		}
	}

	template <class Shape>
	void add(const Array<Shape>& shapes)
	{
		for (const auto& shape : shapes)
		{
			add(shape);
		}
	}

	const RectF& getRegion() const
	{
		return m_region;
	}

	Array<Triangle> calculateVisibilityTriangles(const Vec2& eyePos) const
	{
		const auto points = calculateCollidePoints(eyePos);

		Array<Triangle> triangles(points.size());

		for (size_t i = 0; i < triangles.size(); ++i)
		{
			triangles[i].set(eyePos, points[i].second, points[(i + 1) % points.size()].first);
		}

		return triangles;
	}

private:

	static constexpr double m_epsilon = 1e-10;

	RectF m_region;

	double m_maxDistance = 0.0;

	Array<Line> m_lines;

	const Array<std::pair<Vec2, Vec2>> calculateCollidePoints(const Vec2& eyePos) const
	{
		if (not m_region.stretched(-1).contains(eyePos))
		{
			return{};
		}

		Array<double> angles{ Arg::reserve = m_lines.size() };
		{
			for (const auto& line : m_lines)
			{
				const Vec2 v = (line.begin - eyePos);
				angles.push_back(Math::Atan2(v.y, v.x));
			}
			angles.sort();
		}

		Array<std::pair<Vec2, Vec2>> points{ Arg::reserve = angles.size() };

		for (auto angle : angles)
		{
			const double left = (angle - m_epsilon);
			const double right = (angle + m_epsilon);
			const Line leftRay{ eyePos, Arg::direction = (Vec2::Right().rotated(left) * m_maxDistance) };
			const Line rightRay{ eyePos, Arg::direction = (Vec2::Right().rotated(right) * m_maxDistance) };

			Vec2 leftCollidePoint = leftRay.end;
			Vec2 rightCollidePoint = rightRay.end;

			for (const auto& line : m_lines)
			{
				if (const auto p = leftRay.intersectsAt(line))
				{
					if (p->distanceFromSq(eyePos) < leftCollidePoint.distanceFromSq(eyePos))
					{
						leftCollidePoint = *p;
					}
				}

				if (const auto p = rightRay.intersectsAt(line))
				{
					if (p->distanceFromSq(eyePos) < rightCollidePoint.distanceFromSq(eyePos))
					{
						rightCollidePoint = *p;
					}
				}
			}

			points.emplace_back(leftCollidePoint, rightCollidePoint);
		}

		return points;
	}
};

void Main()
{
	Window::Resize(1280, 720);

	constexpr ColorF objectColor = Palette::Deepskyblue;
	const Array<Triangle> triangles{ Triangle{ 120, 120, 300, 120, 120, 500 } };
	const Array<RectF> rects{ Rect{ 600, 40, 40, 260 }, Rect{ 440, 300, 440, 40 }, Rect{ 1040, 300, 200, 40 }, Rect{ 480, 480, 240, 100 } };
	const Array<Circle> circles{ Circle{ 1000, 500, 80 }, Circle{ 460, 180, 30 }, Circle{ 240, 480, 30 }, Circle{ 300, 560, 30 } };
	const Array<Polygon> polygons{ Shape2D::Star(60, Vec2{ 940, 180 }) };

	VisibilityMap map(Rect{ 40, 40, 1200, 640 });
	{
		map.add(triangles);
		map.add(rects);
		map.add(circles);
		map.add(polygons);
	}

	while (System::Update())
	{
		Cursor::RequestStyle(CursorStyle::Hidden);

		for (const auto& triangle : triangles)
		{
			triangle.draw(objectColor);
		}

		for (const auto& rect : rects)
		{
			rect.draw(objectColor);
		}

		for (const auto& circle : circles)
		{
			circle.draw(objectColor);
		}

		for (const auto& polygon : polygons)
		{
			polygon.draw(objectColor);
		}

		map.getRegion().drawFrame(0, 8, objectColor);

		const Vec2 eyePos = Cursor::Pos();

		const auto vTriangles = map.calculateVisibilityTriangles(eyePos);

		for (const auto& vTriangle : vTriangles)
		{
			vTriangle.draw(ColorF{ 1.0, 0.5 });
		}

		Circle{ eyePos, 20 }.draw(Palette::Orange).drawFrame(1, 2);
	}
}

10. ほどよい距離で重ならない点群を生成する

コード
# include <Siv3D.hpp>

void Main()
{
	Scene::SetBackground(ColorF{ 0.6, 0.8, 0.7 });

	constexpr Rect AreaRect{ 100, 120, 600, 400 };

	double r = 15.0;

	// 点群を生成する
	PoissonDisk2D pd{ AreaRect.size, r };

	while (System::Update())
	{
		AreaRect.stretched(r).draw(ColorF{ 0.7 });

		AreaRect.draw(ColorF{ 0.2 });

		for (const auto& point : pd.getPoints())
		{
			Circle{ point, (r / 4) }.movedBy(AreaRect.pos).draw();
		}

		if (SimpleGUI::Slider(r, 5.0, 40.0, Vec2{ 40, 40 }))
		{
			// 点群を再生成する
			pd = PoissonDisk2D{ AreaRect.size, r };
		}
	}
}

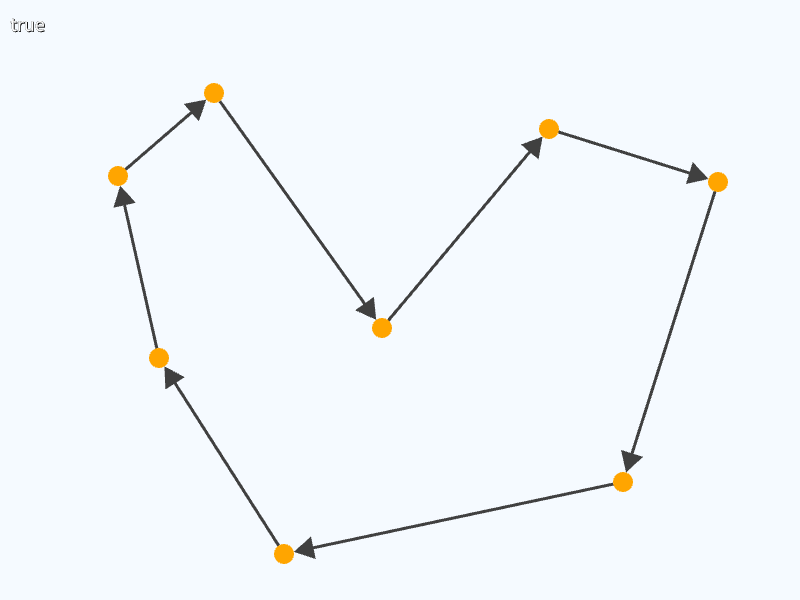

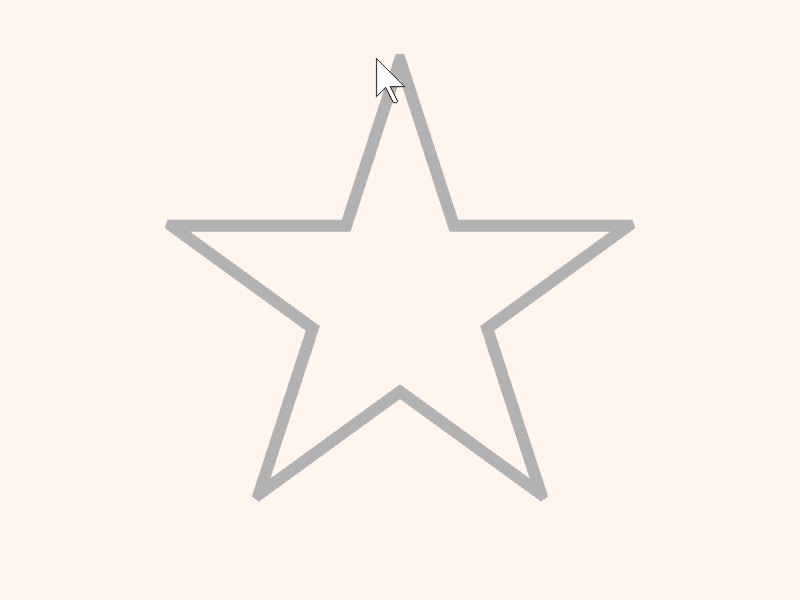

11. Sketch to Polygon

コード
# include <Siv3D.hpp>

void Main()
{
	// 作成した Polygon の配列
	Array<Polygon> polygons;

	// 書き途中の LineString
	LineString points;

	while (System::Update())
	{
		// 左クリックもしくはクリックしたままの移動が発生したら
		if (MouseL.down() ||
			(MouseL.pressed() && (not Cursor::DeltaF().isZero())))
		{
			points << Cursor::PosF();
		}
		else if (MouseL.up())
		{
			points = points.simplified(2.0);

			if (const Polygon polygon = Polygon::CorrectOne(points))
			{
				polygons << polygon;
			}

			points.clear();
		}

		// それぞれの Polygon を描画する
		for (auto&& [i, polygon] : Indexed(polygons))
		{
			polygon.draw(HSV{ (i * 20), 0.4, 1.0 })
				.drawWireframe(1, Palette::Gray)
				.drawFrame(4, HSV{ i * 20 });
		}

		points.draw(4);
	}
}
